Arduino Multi Rotary Sensor

We can build electronics projects just as easy as piling bricks. Arduino and community have made the programming much easier than ever before. How about some elixir on hardware part? Maybe it is not yet convenient to make complex interfaces, but we can at least start from the most commonly used modules.

By using electronic bricks, you may connect Arduino compatible boards easily with various digital, analog and I2C/Uart interfaces. These the breadboard-less firm connection are prepared to extensive modules like poteniometers, sensors, relays, servos...even buttons, just plug and play.

Each terminal module has buckled port with VCC, GND and Output, which has corresponding port on the sensing board, with a plain 2.54mm dual-female cable you may start playing already. Buckled brick cables are like cement for bricks, make the connections easier, secure and more professional looking.

It is very interesting Electronic Brick Module

This module can be used with Arduino Special Sensor Shield V4.0.

You can do some simple design about it，it support“plug and play”.

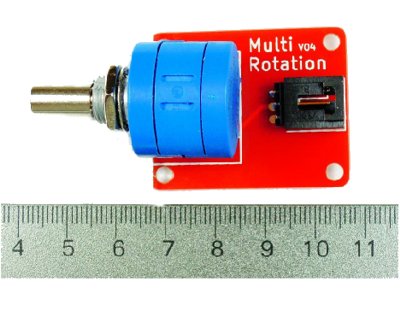

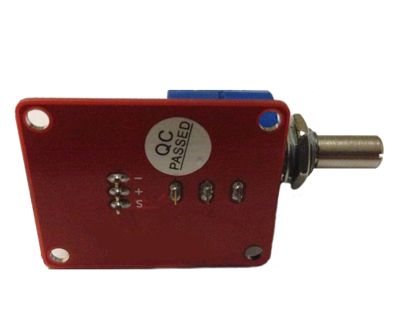

Multi Rotation Brick

10 rounds, 10k ohm poteniometer could be used as rotation input. it is arduino compatible multi-ring rotation sensor. It is based on multi-turn precision potentiometer. It can rotate upto 10 laps. The voltage can be subdivided into 1024 copies. With the usage of special sensors expansion can be achieved accurately. It is easy to be connected to Arduino with our sensor expansion board.

1. Analog Interface

2. Can rotate 10 full rounds

3. Based on multi-turn precision potentiometer

4. Includes 30cm buckled cable to connect to Sensor Shield.

Connecting Diagram :
